Checking the Bellows
The one part of note because of its expense is the bellows also called the motor. It is the large round "bowl shaped" object on the back of the clock. The current replacement cost that I charge is $600.00 (if needed). A refill of your old bellows costs $200.00 and can be done about 80% of the time and keeps the clock 100% original. Many on the Internet have advised people to place the entire clock in a freezer for a few minutes. Please don't ever do this because that exposure will leave either water vapors or droplets on everything and will eventually rust all the moving steel parts. Besides this "method" tells you nothing if the mainspring is fully wound, which is the case in most Atmos clocks. The bellows winds the mainspring, or more accurately, the bellows keeps the mainspring wound and can wind the spring but that would take months. Before you test the clock make sure that the clock has power by letting the clock be exposed to some temperature fluctuations (4 degrees Fahrenheit or more) over the next few weeks. This will start to wind the mainspring if needed. The bellows have an upper and lower temperature limits and these are 86°F and 46.4°F respectively. If the temperature is constantly outside these limits, the bellows will not wind the mainspring. These temperature changes will cause the bellows to expand and contract therefore winding the mainspring. The bellows power is passed on to the mainspring via the brass chain that you see at the roughly center of the movement. When the bellows is good it contains sufficient gas (ethylene chloride I was told) to exert pressure on the chain (indirectly). The following check MUST be done at 68 degrees Fahrenheit. The chain comes out of the bellows chamber (the large round bowl like piece) and makes a left turn (as you face the clock) around a pulley. It continues to travel around to a second pulley. This second pulley is the one which is actually attached to the mainspring arbor and the chain end makes a counter-clockwise wrap around this second pulley. The result should be that the chain end is now underneath the second pulley. If the chain end is resting on top of that second pulley then the bellows is flat (or you live in a freezer) and therefore needs replacing. Anywhere in between the bottom position (roughly 6 O'clock) to the top position (roughly 12 O'clock), the bellows has lost some gas and it MAY have enough gas to continue the wind the mainspring. The closer the chain end is to the bottom position the better. Here are two pictures displaying a good bellows based on the position of the chain. The first is taken to display most of the Atmos' "left" side and the second is a much more close shot of the same Atmos.

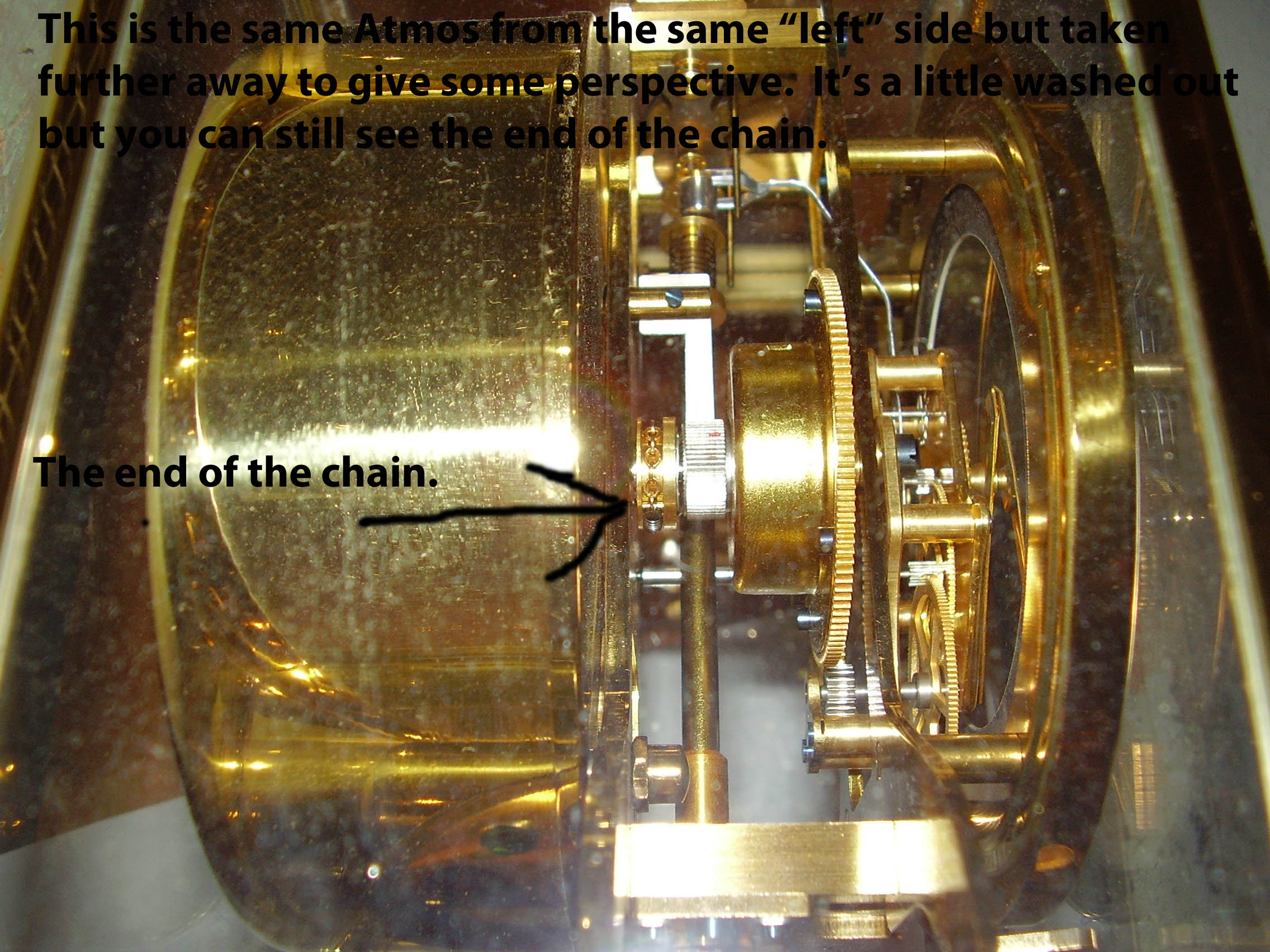

The best way to see if the bellows is good is to take the bellows chamber off the clock. The chamber is held in usually by two or four brass nuts. I use a 5/16" closed end wrench to remove these nuts and they are actually 8mm but either will work fine. A word of warning here because the above mentioned chain is attached to a fairly strong spring and that spring will "push" the bellows chamber away from the movement as you remove these nuts. On the caliber (model) # 540 the bellows chamber is removed by exerting a counter-clockwise (bayonet fitting) turning pressure with your hands and be sure to turn the "inner" part of the drum. In other words turn as close to the frame as possible. Once the bellows chamber is removed you measure the depth from the top lip of the bellows chamber opening down to the top of the actual bellows. This will be obvious once you have the bellows chamber off the movement. Do NOT remove the bellows itself for this measurement. At room temperature the depth should be between 22 to 26mm, if the depth is 26 to 32mm then the bellows is questionable but should still provide years of service. Anything over 32mm the bellows must be replaced because that means that there is no gas contained within the bellows. The "real" check is how many winds (turns) on the mainspring. If the mainspring has 4 or more turns then the bellows are doing their job regardless of their depth. For the caliber 540, the depth should be between 20 to 24mm, and 24 to 30 for a questionable bellows. Anything over 30mm should be replaced. Again the check, for the 540, is at disassembly and the turns on the winding wheel or ratchet wheel (both turn at the same rate) and not the mainspring. The winding wheel should have at least 3 turns, which translates into 9 turns on the watch like mainspring inside the barrel. As a final check to make sure the bellows is indeed okay, you can place the entire bellows chamber in the freezer for about three to five minutes. If the bellows is good it will collapse to almost flat which would give you a measurement of about 40 to 44mm. Or you can place a piece of ice on top of the bellows and is should begin collapsing within about 15 seconds. In either case above do NOT allow the bellows to be exposed to the cold any longer five minutes because you can damage this very expensive piece. Return to Index
ReplacementThe bellows or "motor" contains the following: 1) Motor knobs (either two or four nuts); Part # 3519. 2) Motor protection plate; Part # 3546. 3) Coil spring (70mm); Part # 3547 4) Metal (brass) drum; Part # 3580 5) Bellows; Part # 3581 6) Drum cover; Part # 3582 For schematics with the part numbers, please see: Part SchematicsIn order to replace the old bellows for a new one you first remove the entire "motor" or bellows chamber (see above). There are either two or four brass nuts which hold the motor to the back of the frame plate. I use a 5/16" closed end wrench to remove these nuts. A word of warning here because the above mentioned chain is attached to a fairly strong spring and that spring will "push" the bellows chamber away from the movement as you remove these nuts. On the caliber (model) # 540 the bellows chamber is removed by exerting a counter-clockwise (bayonet fitting) turning pressure with your hands and be sure to turn the "inner" part of the drum. In other words turn as close to the frame as possible. To remove the old bellows you must make sure it is fully compressed. An old bellows with all of its gas leaked away will measure about 40 mm from the top of the metal drum to the top of the compressed bellows. Most usually have some gas (ethylene chloride) remaining. Therefore you must compress the bellows yourself. Some place the chamber into the refrigerator but I like to use ice cubes. Usually one ice cube is enough to fully compress the bellows in about a minute. Once it is compressed, push down on the drum cover (part # 3582) to loosen any bonds that may have formed on that cover and the coil spring (part # 3547). On the caliber 540, once the bellows chamber is removed from the frame, the bellows casing has a bayonet fixing in which both halves must be turned in opposite directions, with the back of the drum moving counter-clockwise. Use an ice cube to collapse the bellows when both removing and installing. Once satisfied that the coil spring is "flexible" then push down on the drum cover and turn it in either direction until the four (4) tabs are fully exposed from under the four (4) tabs which are located on the metal drum. Caution should be used because of the tension in the coil spring. This tension will make the drum and the cover separate rapidly unless you supply the "containing" force so they do not spring apart quickly. The rest should be common sense and you do exactly the opposite in order to place the new bellows inside the motor starting with the ice cube. Return to Index Suppliers of Atmos PartsThe following is a Web site that describes all of the Atmos parts that I sell. I sell virtually every part for the LeCoultre Atmos. Obtaining Atmos PartsReturn to Index Manual WindingThere are several ways to manually wind the Atmos. By far the best way is to remove the metal drum (part # 3580) which contains the bellows (part # 3581). The metal drum, which some incorrectly refer to as the bellows, is simply removed from the frame in order to access the coil spring. Once it is removed you will see a coil spring (part # 3494) with a brass chain (part # 3491) running through the middle and attached to the end of the chain with an aluminum cap called the spring guide (part # 3493). This is all held together by a bent steel straight pin called the chain stopper (part # 3492). In order to wind the mainspring properly you simply become the bellows. Push the coil spring in toward the movement until it will not compress any more. Then remove your hand and the coil spring will try to go back top its original position. This going back to the original position is the actually winding taking place. By pushing in the coil spring, the clock "prepares" for the eventually going back or winding. This is similar to a pocket watch where one direction actually winds the watch and the opposite direction allows you to go back to the previous position to wind it again. The reason I like to use the above method is because the combination of the coil spring and the bridled mainspring does NOT allow for over winding, assuming you do not "help" the coil spring while it springs back and you stop pushing when the coil spring's extension is slightly less than it did the time before. So once you have compressed the coil spring and it does not "recoil" back to the original position, the clock is fully wound. A fully wound clock should run for about 14 months, with about 7 or 8 of those months having enough power to run accurately. After that the time keeping tends to deteriorate. If the Atmos still does not run after manual winding, please be sure to tell the person you are going to hire to overhaul the clock. The reason is that a marginal bellows will probably not be replaced if the repair person counts a "healthy" wind on the mainspring. If wound properly, either by the bellows or by hand (removing the bellows and pushing the coil spring), which was described above, then the amount of running time totally depends on the caliber. All of these will vary by as much as 4 months but a caliber 540 will run anywhere from 10 months to 14 months. A caliber 528/526 will run anywhere from 14 to 16 months and a caliber 519 and the Atmos II will run anywhere from 15 months to 2 years. All of this has to do with the quality and length of the mainspring. And of course the actual condition of the movement and frame will change these numbers. Some choose to wind by turning the chain and spring pulley (part # 3486). That method is not controllable and you can wind it too little or too much. Too little will not hurt anything but too much and then the clock can have too much power and the balance may over swing causing the clock to run fast because the roller will hit the fork on the opposite side and that will limit the "natural" swing. The general clock terms this is called over swing. Another danger of winding this way is that the "stopping pin" that secures the chain to the "chain stopper", which is the cap of the coil spring, may become dislodged and the chain will eventually lose its tension and if the bellows still has some gas left, then there is no way it will wind the clock. So please don't be lazy and try to wind by pushing the chain and spring pulley. I'm mentioning this because some on the Internet advise winding this way and it's an accident waiting to happen. Return to Index Refilling Atmos BellowsIf you want the bellows refilled as a stand alone service, then the cost is $315.00. That includes return shipping (in the U.S.) and you will have to remove the spent bellows and sent it to me and reinstall the refilled bellows. Refilled bellows carry a 2-year warranty. The shipping charge is $15.00 to the US, $35.00 to Canada and $50.00 to the rest of the world, which includes insurance. For one week shipping to the rest of the world, you may add $60.00 to the total of the order because the $50.00 option takes about 2 weeks. The final price outside North America is either $350.00 or $360.00 depending on your shipping choice. Please be aware that I do not perform the service myself and send out the bellows for refilling. Therefore, you must allow about six weeks for the service and the possibility that the refill failed. If you do not have the old bellows, then I can supply a bellows usually manufactured within a year of your serial #. That adds $50.00 to the $315.00 mentioned above. You must be aware that there is a 20% failure on refilling used bellows. Therefore, I cannot guarantee that your bellows refill will be successful. I can, however, have one of my old stock bellows refilled in case of failure and that adds $50.00 to the refilling charge (see below). If the procedure fails, then I'll return your original bellows at no charge, assuming that you sent just the bellows for refilling or take a spend bellows from my inventory that is close to the date of your original bellows (usually within a year) and charge $50.00 extra for a total of $365.00 and that includes the used bellows from my inventory. If you sent the entire clock as part of an overhaul, then I will install either a new bellows at an extra cost of $600.00 or use another refilled bellows that is close to the date of your original bellows (usually within a year) for the an extra $50.00 for a total cost of $250.00. Return to Index Purchasing Spent Bellows for RefillingYou can order a "spent" bellows but the date may be off because I don't have many left. I suggest you mark the inside of these bellows with the date of your old bellows. For just an old bellows without refilling, the charge is $65.00 including shipping (in the U.S.). I would like payment by money order, certified check, personal check, business check, or through Pay Pal or Square, which is the only way I take credit cards. I do prefer a check over Pay Pal because Pay Pal takes 3% and over Square because they take 2.75%. I only take credit cards if you are in the USA or Canada. Either the 3% or the 2.75% are added to the total bill if you use a credit card. With Pay Pal you can pay me directly using "friends and family" where you absorb all fees and I'm paid the full amount. There would be nothing added amount to the final fill if you absorb all fees. Here you log on to Pay Pal and send me the full amount of my bill, so there is no E-voice coming from me with this method and you will be charged all Pay Pal fees on top of my final bill. With either Pay Pal or Square, I will send an invoice to your E-mail address. Here you are dealing directly with either service and not me. You do have to be a member of Pay Pal in order to issue a payment but you may use Square without any membership or additional Square fees but the 2.75% will be added to your total bill. For Pay Pal 3% is added. With Square, I can also take the credit card information which includes the number, expiration date and the last 3 or 4 #'s of the security code from the back of the card BUT that adds 3.5% to the final bill. I'd prefer to avoid this method but it is an option. All of the added fees are exactly what either service charges me for taking your credit card. Return to Index Replacing Soldered Bellows

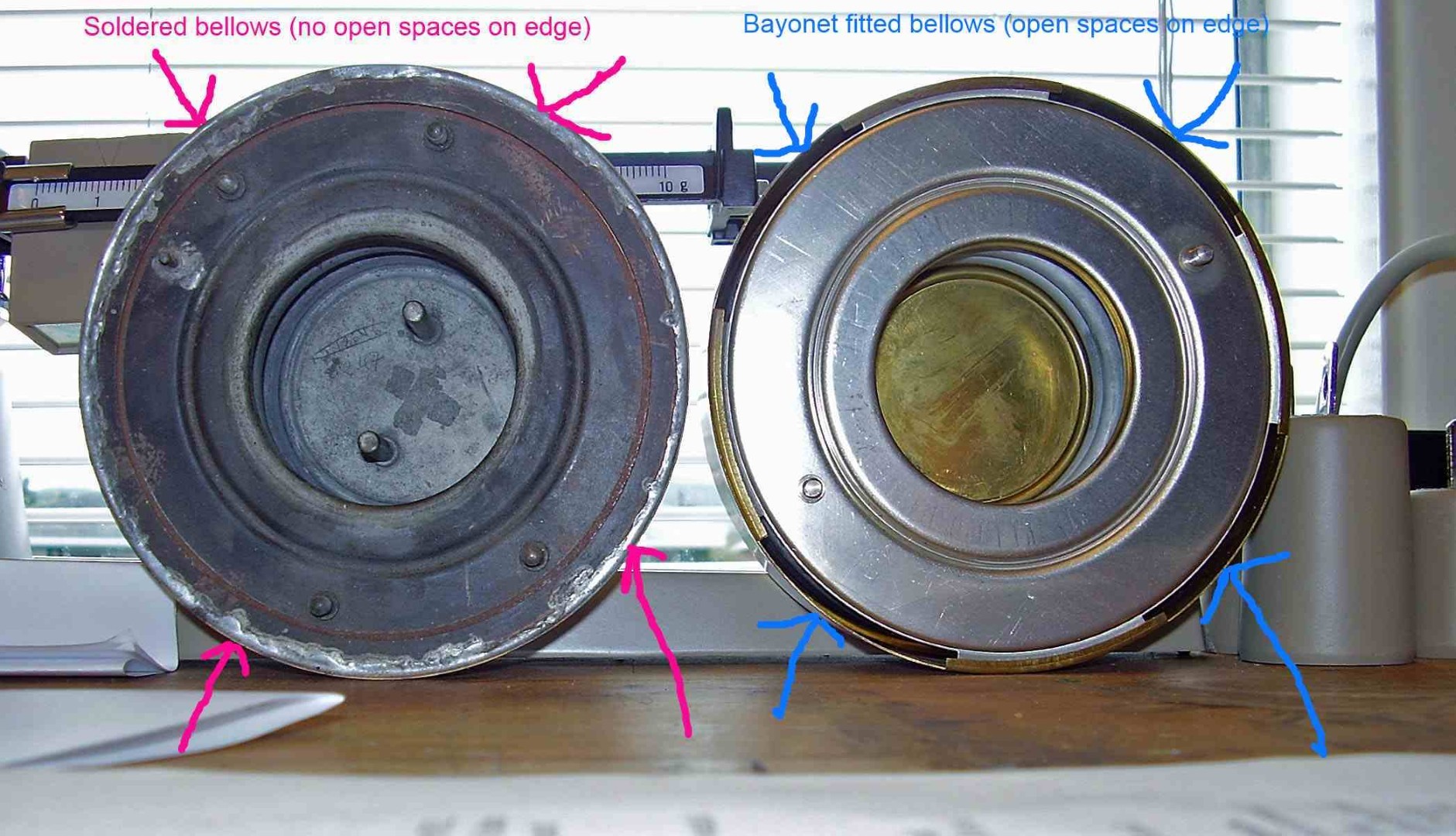

The bellows on the left are soldered and the bellows on the right are the bayonet fitted bellows which can easily be removed if refilling is indicated. If you look real close at the soldered bellows on the left, you will see that they have already been cut and the pains taking task of removing the old bellows has yet to begin. I have a file for replacing the older soldered bellows without having to desolder. It's located at Bellows2.pdf an Acrobat file. If you want your soldered bellows replaced with a new bellows as a stand alone service, then the cost is $1,400.00. That includes return shipping (in the U.S.) and you will have to remove the entire bellows (cover and motor included) and sent it to me and reinstall the completed bellows. At least 1/2 of the $1,400.00 ($700.00) must be pre paid and the service can take as long as 3 months because of slowness in the ordering process for the new bellows.
For dealing with soldered bellows as part of the Atmos clock overhaul service, please see this link: Soldered Bellows as part of an overhaul
