In general, the Atmos II, 519, 529 take unique parts. The 522, & 532 take all 526/528
parts accept the escape wheel, which is a 519 part. The 540 and higher all take 540 parts.
The movement caliber number is usually stamped on the front plate
of movement (see repair guide for location). Another location is
found on the bottom of the case, please be sure to lock the
pendulum before you look for the caliber number located on
the bottom of the case. The following are the most popular
caliber numbers:
Movement Caliber:
Cal. 540
Cal. 532
Cal. 529
Cal. 528
Cal. 526
Cal. 522
Cal. 519
Cal. Atmos II
The Atmos II and the 519 are not marked for their caliber, the distinct
difference is that the Atmos II as a "knob" for adjusting the fast and slow.
Atmos II's and caliber 519's can be identified by the fact that their fork has
a large rounded "apple" end.
The Atmos II and caliber 519's can use most of the parts and
their number listed here. Please see 519 parts list for a
complete listing for those parts and part numbers. Specifically, the
Atmos II and caliber 519 MUST take unique parts for each of the following:
Barrel # 3820
Barrel arbor # 3821
Movement plate # 3824
3/4 plate # 3825
Fork # 3826 & # 3827
Third Wheel # 3832
Center wheel # 3833
Escape wheel # 3835
Clicks and pulley assembled # 3875
Arbor and ratchet assembled # 3877
Roller # 3879
Intermediate wheel # 3886
So, generally speaking all movement wheel and plates are
different with the one exception of the fourth wheel, which is the wheel
that carries the minute hand. Virtually all other parts are interchangeable.
The two below are in the frame and not in the actual movement.
The gears are arranged as follows:
# 3481 the mainspring barrel
# 3497 the intermediate wheel
The movements gear follow:
# 3400 Center wheel (The intermediate wheel drive this movement gear.)
# 3401 Third wheel
# 3402 Fourth wheel (The minute hand attaches to this gear.)
# 3409 Escape wheel
# 3410 Pallet fork and staff
The following is all the information I have on obtaining Atmos parts.
Atmos Parts Web Page
The following is a complete list of the Atmos parts for the calibers 522 through 532.
The caliber 540 was a complete "overhaul" from the previous design and their part
numbers are totally different. I have a separate listing for 540 parts .
Atmos Clock Parts List for Calibers 522 through 532.
Atmos Clock Parts List for Calibers 522 through 532.
Description

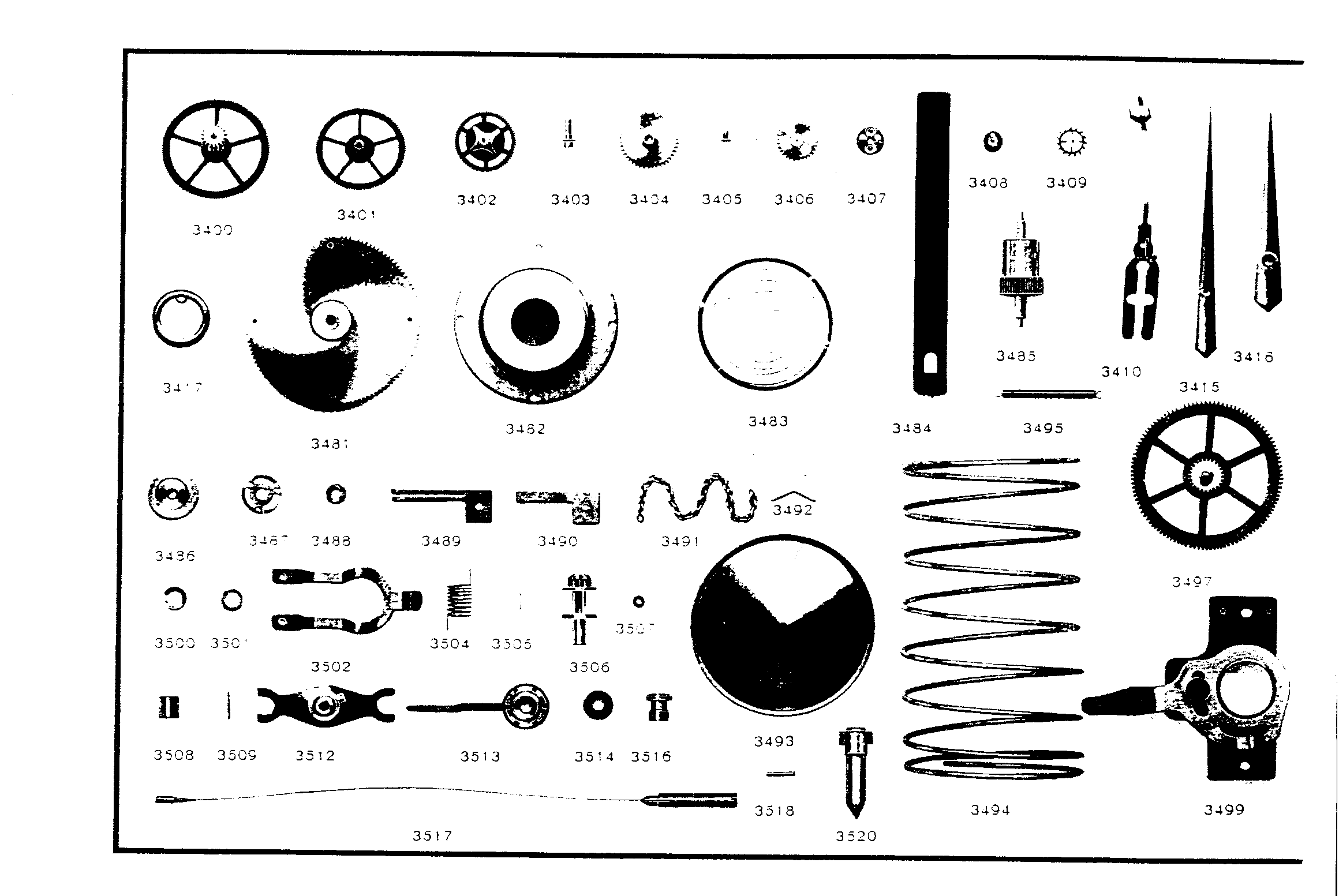

3400 Center Wheel
3401 3rd Wheel
3402 4th Wheel - Minute Wheel
3403 Hour Wheel Stud
3404 Hour Wheel
3405 Bushing
3406 Minute Wheel - Intermediate wheel or idler gear
3407 End Stone (2 jewels)
3408 End Stone (1 jewel)
3409 Escape Wheel
3410 Pallet, Fork & Staff
3414 Dial (state color, size, shape and numerals)
3415 Minute Hand
3416 Hour Hand
3417v Water Level
3417vi Water Level
3417viii Water Level
3418 Rubber Bushing
3430 3/4 Plate & Pallet Stud Screw
3431 End Stone Screw
3432 Movable Cannon Screw
3450 Upper & Bottom Center Wheel Jewel
3451 Upper 3rd Wheel Jewel
3452 Bottom 3rd Wheel Jewel
3453 Bottom 4th Wheel Jewel
3454 Escape Wheel & Lever Wheel Jewel
3455 End Piece Jewel
3457 Entry Pallet Jewel
3458 Exit Pallet Jewel
3481 Barrel
3482 Barrel Cover
3483 Mainspring
3484 Bridle
3485 Mainspring Arbor
3486 Chain & Spring Pulley
3487 Click Spring
3488 Pulley Washer
3489 Ratchet Click
3490 Counter Spring
3491 Chain
3492 Chain Stopper
3493 Spring Guide
3494 Coil Spring (52mm)
3495 Pulley Spring
3497 Intermediate Wheel - 2nd wheel on frame
3499 Lower Bridge
3500 Bent Locking Washer
3501 Friction Washer
3502 Stopping Spring
3504 Roller Spring
3505 Roller Spring Pin
3506 Roller (COMPLETE)
3507 Roller Washer
3508 Roller Staff
3509 Roller Staff Pin
3510 Regulating Clamp
3512 Regulating Cannon & Spring
3513 Complete Regulator
3514 Upper Bridge Support Washer
3516 Regulating Spring Pillar
3517 Suspension Unit
3518 Suspension Cannon Wire Pin
3519 Motor Knob
3420 Moving Center Point
3521/1.0 Regulating Mass (1.0mm)
3521/1.5 Regulating Mass (1.5mm)
3521/2.0 Regulating Mass (2.0mm)
3522 Regulating Stud
3524 Banking Washer (Cal. 526, 528)
3526 Cylindrical Nut (Cal. 528)
3533R Dial Rest (for ROUND dial)
3533S Dial Rest (for SQUARE dial)
3536 Lower Bridge
3538 Moving Tube
3539 Balance Wheel
3540 Balance Wheel Tube
3541 Stop Finger
3542 Outside Stopping Spring
3543 Counter-Nut Stop Finger
3544 Inner Stop Spring
3545 Inner Stop Arbor
3546 Motor Protecting Plate
3547 Coil Spring (70mm)
3548 Cover Spring Guide
3550 Barrel Cover Screw
3551 Plate & Bottom Bridge Screw
3552 Spring Guide & Roller Washer Screw
3553 Regulating Cannon & Spring Screw (For regulating clamp)
3554 Banking Washer Screw
3555 Suspension Cannon Wire Screw
3556 Movement Fixing Screw
3557 Clock Base & Bottom Plate Screw
3558 Stopping Spring Screw
3559 Stopping Lever Screw
3560 Dial Screw
3562 Upper Bridge & Balance Screw
3563 Dial Rest Screw
3564 Clock Base Screw
3565 Stop Finger Screw

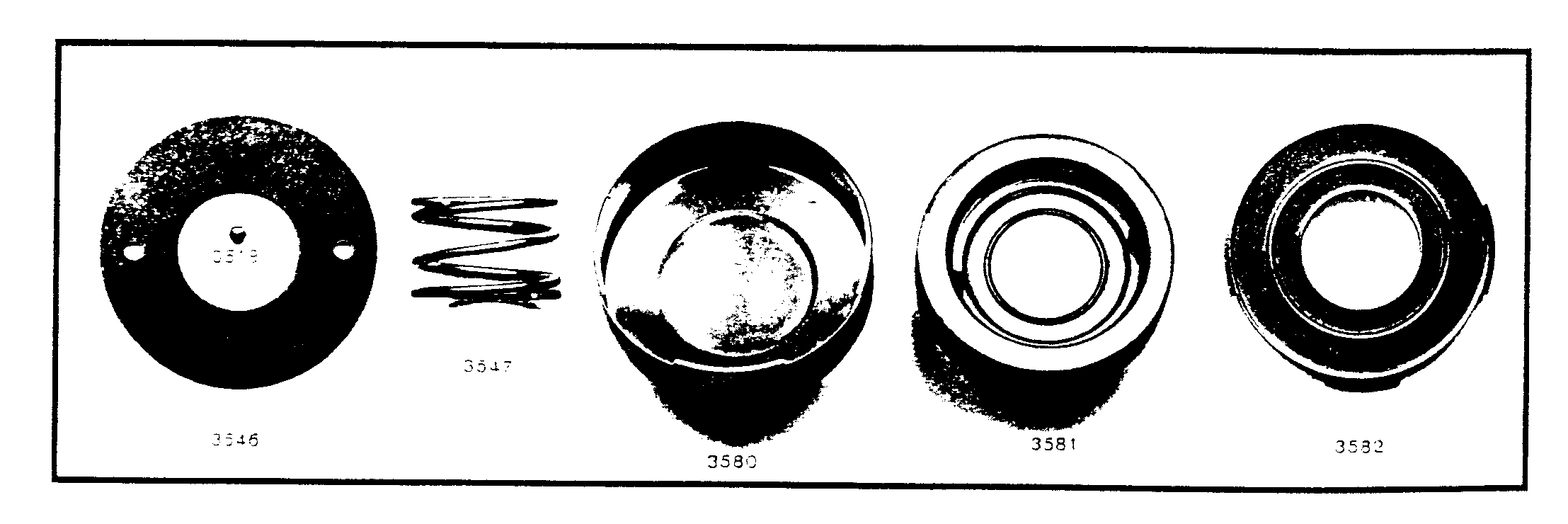

3580 Metal Drum
3581 Bellows
3582 Drum Cover (Cal. 526, 528)
3582i Drum Cover
3582ii Drum Cover
3583v Clock Base
3583viii Clock Base (BRUSHED)
3583viii Clock Base (POLISHED)
3584 Upper Frame
3585 Bottom Frame
3586vi Holder
3586viii Holder
3587iv Back Holder
3587v Back Holder
3587viii Back Holder
3588v Front Holder (RIGHT)
3588viii Front Holder (RIGHT)
3589v Front Holder (LEFT)
3590v Upper Bezel ( x mm)
3590viii Upper Bezel (POLISHED) (142 x 189mm)
3590viii Upper Bezel (BRUSHED) (142 x 189mm)
3591v Bottom Bezel ( x mm)
3591viii Bottom Bezel (POLISHED) ( x mm)
3591viii Bottom Bezel (BRUSHED) ( x mm)
3592v Upper Glass (115 x 157mm)
3592vi Upper Glass (131 x 179mm)
3592viii Upper Glass (131 x 179mm)
3593v Side Glass (115 x 182mm)
3593vi Side Glass ( x mm)
3593viii Side Glass ( x mm)
3594v Front/Back Glass ( x mm)
3594vi Front/Back Glass ( x mm)
3594viii Back Glass ( x mm)
3595v Back Glass (142 x 90mm)
3595viii Back Glass ( x mm)
3596 Front Glass (Cal. 522 & 532)(117 x 117mm)
3596vi Front Glass (144 x 185mm)
3596viii Front Glass (163 x 181mm)
3597 Rubber Joint
3598 Holder Screw
3599 Clock Case Bezel Screw
3600 Door Front Bezel Screw
3601 Upper Bezel Screw
3602 Bottom Bezel Screw
3603 Clock Case Plug
3604 Clock Case Plug Screw
3605 Bottom Bezel Screw (case)
Case Style: (Roman numerals in above list)
The case style number is usually stamped on the under side of the case as
either a Roman number (as noted in parts list) or as an Arabic number along
with the movement caliber number (such as VIII or 528-8).
Back to Mike's Clock Clinic's Main Web Page
Back to Mike's Clock Clinic's LeCoultre Atmos Parts Web Page
